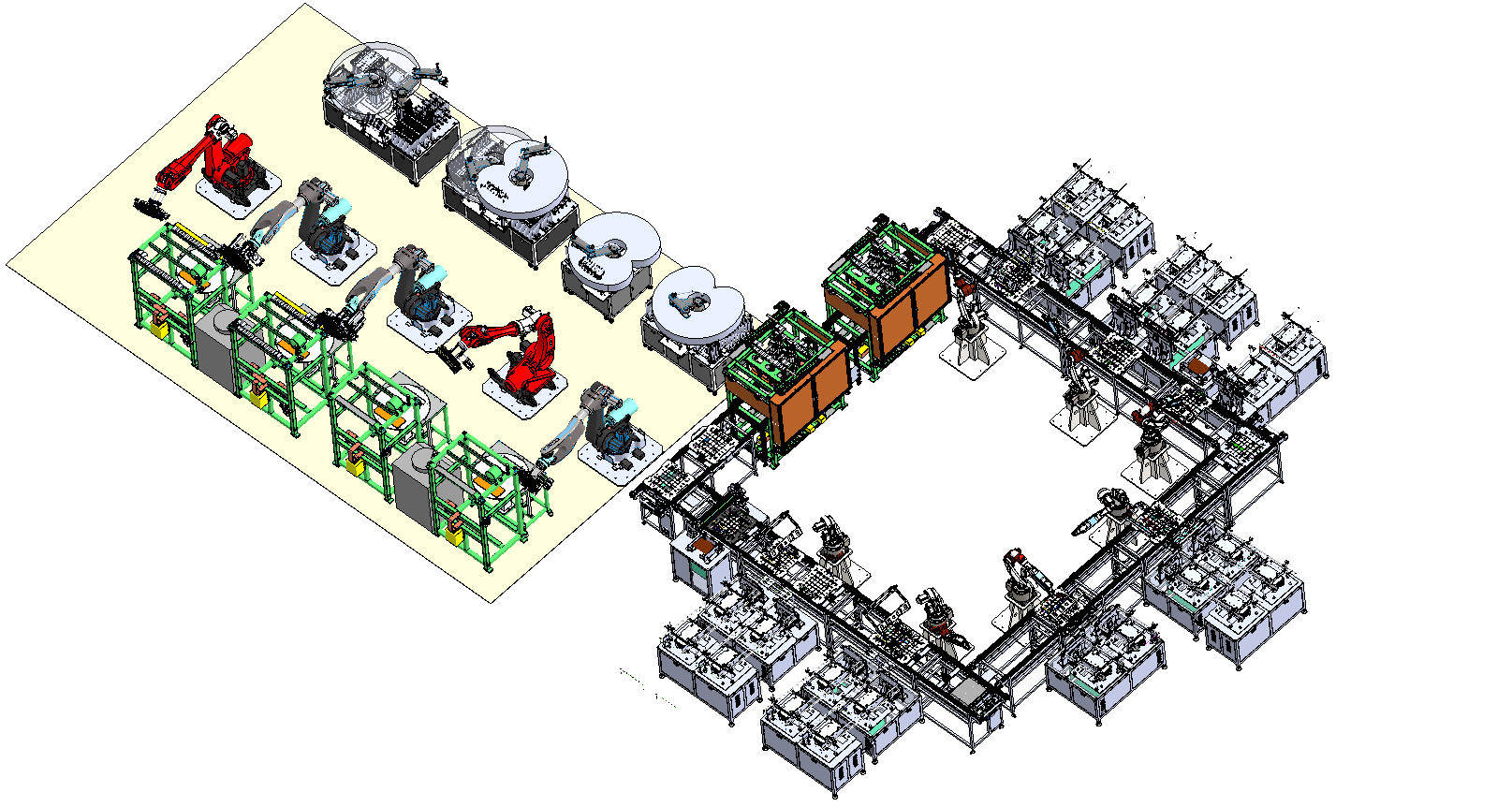

本生產線為洗碗機碗籃全自動組合焊接線，主要由6臺自動組合焊機、18臺工業機器人、17套儲送料裝置和運行自檢系統組成。新型焊接機構全面降低焊接耗材，工業機器人聯動系統實現整線全自動無人運行，柔性化設計實現不限規格共線分時生產，自檢測系統實現整線無憂運行。
       焊后成品無需矯正，產能節拍≤30秒/件，一次通過率達到99%，產成品率可達99.99%。

     THIS PRODUCTION LINE IS THE AUTOMATIC COMBINATION WELD- ING LINE FOR DISHWASHER BOWL BASKET, MAINLY COMPOSED OF 6 SETS OF AUTOMATIC COMBINATION WELDING MACHINES, 18 SETS OF INDUSTRIAL ROBOTS, 17 SETS OF MATERIAL STORAGE AND FEEDING DEVICES AND SELF-CHECKING SYSTEM. THE NEW WELDING MECHA- NISM CAN REDUCE THE WELDING CONSUMABLES, THE INDUSTRIAL ROBOT LINKAGE SYSTEM CAN REALIZE FULLY AUTOMATIC OPERA- TION, THE FLEXIBLE DESIGN CAN REALIZE UNLIMITED-SPECIFICATION COLLINEAR TIME-SHARING PRODUCTION, AND THE SELF-TESTING SYSTEM CAN REALIZE FULLY WORRY-FREE OPERATION.
     THERE IS NO NEED TO CORRECT THE FINISHED PRODUCT AFTER WELDING. THE OUTPUT RATE IS LESS THAN 30 SECONDS/PIECE, THE PASS RATE IS 99% AND THE YIELD RATE IS 99.99%.

設備尺寸：22700 x 13700 x 2149MM/焊接水平高度1145MM

焊接范圍：各種規格洗碗機碗籃

設備焊接類型：鐵線、不銹鋼線

系統最大氣壓：0.7MPA

系統額定工作壓力：0.5MPA

電源電壓：3相 AC 380V±10% 50HZ、控制箱路220V
